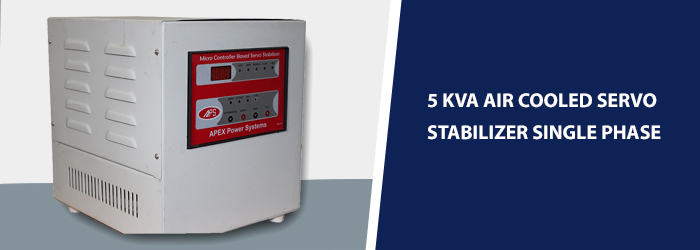

5 KVA Air Cooled Servo Stabilizer Single Phase

(We customize Stabilizer as per your requirement)



5 KVA Air Cooled Servo Stabilizer Single Phase

Brand Name: Apex Power Systems



Technical Specifications

Technical Characteristics Single Phase Three Phase
Ratings Available 1 KVA to 20 KVA 6 KVA to 2500 KVA
Input Voltage Range Options 195 V – 280 V AC 340 V – 480 V AC
  170 V – 270 V AC 300 V – 470 V AC
  155 V – 270 V AC 270 V – 460 V AC
  140 V – 260 V AC 240 V – 460 V AC
  110 V – 260 V AC 190 V – 460 V AC
  90 V – 260 V AC 155 V – 450 V AC
Output Voltage 230 V + - 1 % 380/400/415 V + - 1 %
Output Adjustment 220 – 240 V AC 380 – 415 V AC
Output Regulations ± 1% ± 1%
Type NA Unbalanced Type
Insulation Class B/Class F
Vector Group Single Phase Star / Star , 3 Phase + Neutral
Frequency Hz 47 Hz -53 Hz 47 Hz -53 Hz
Nature of Cooling Air Cooled Servo Stabilizer
  Oil Cooled Servo Stabilizer
Construction Variable Auto Transformer + Buck Boost Transformer + Servo Motor
Effect of Power Factor Nil
Wave Form Distortion Nil
Control Circuit Micro controller based
Response Time 10 ms or As per IS 9815 Standards
Voltage Correction Rate for Air Cooled Servo Stabilizer 15 -20 Volts / Sec
Voltage Correction Rate for Oil Cooled Servo Stabilizer 8 -12 Volts / Sec
Metering Digital Display or Analogue Display
General Efficiency of our Servo Stabilizer Better than 96 % or As per IS 9815 Standards
Ambient Temperature 0 – 55 Degree C
Optional Protection Under / Over Voltage Cut off Protection
  Overload / Short Circuit Protection
  Manual Bypass – Changeover
  Surge Protection using SPD, Class C
  Single Phase Prevention
