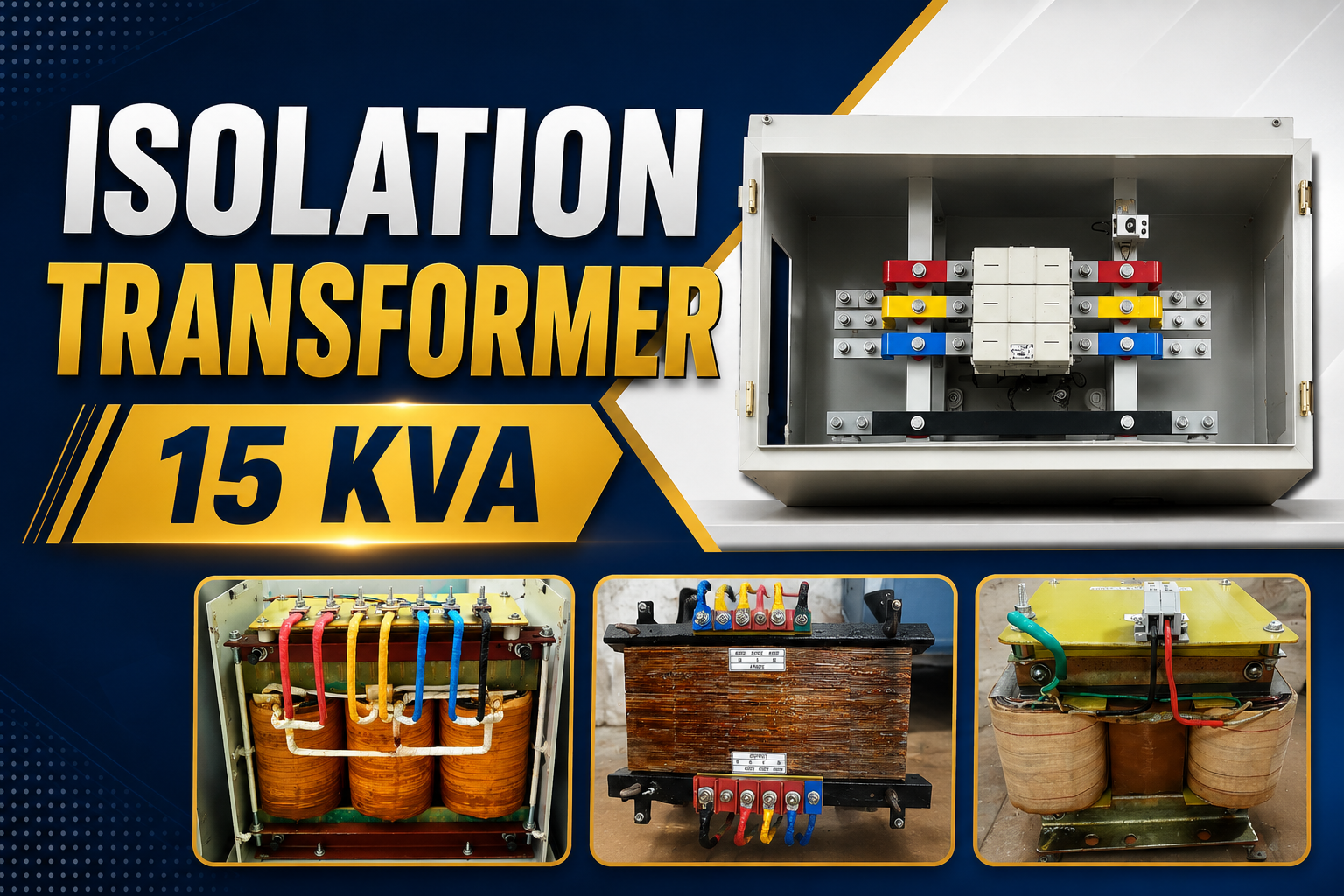

Isolation Transformer 15 KVA
Product Description
ISOLATION TRANSFORMER TECHNICAL SPECIFICATIONS
Input Voltage : 415 Volt AC
Output Voltage : 415 Volt AC
Frequency : 50 Hz.
Input Connection : Delta
Output Connection : Star
Coupling Capacitance : Less than 0.01 pF
C.M.N.R. : 100 db
DC Galvanic Insulation : Over 100Mega Ohms between any winding Or winding to ground
Type of Cooling : Natural Air Cooled
Ambient temperature : -10C – 550C
Transformer Ratio : 1.5
Power Factor : 0.75 Lag to lead
VI Electric strength : 2500 V AC for 120 sec.
Insulation Resistance : More Than 100M Ohms.
Class of Insulation : Class ‘F’
Losses : 3% – 5%
